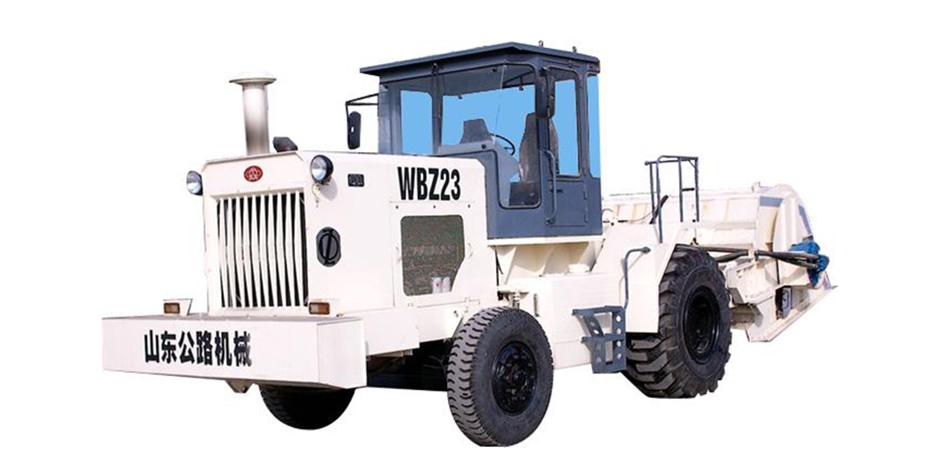

WBZ23.WBY210 Stabilized Soil Mixer is used for highway, road ,airport ,quay and square for mix-stiring on the worksite firm-materials of base-layer and surface-layer.

發動機

●采用康明斯N系列渦輪增壓發動機

●結構緊湊、噪聲小、易于維修、廢氣排放低等優點

●整機功率儲備大、可靠性高

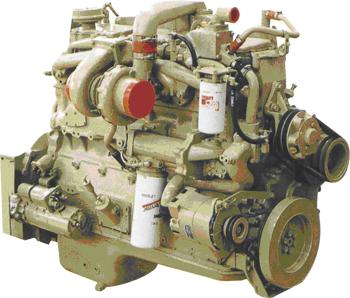

The Engine

●Adopt Cummins N series turbo engine.

●Compact structure , small yawp, easy service, and low exhaust emission.

●A high hive power as well as high reliability.

液壓系統

●行走采用PV23變量泵與MF23定量馬達組成的閉式系統

●工作裝置采用A4VG250變量泵與GM5A1600定量馬達組成的閉式系統.

●傳動效率高、噪聲低，可實現功率自動分配

●結構簡單、維修方便

The hydraulic system

●Driving is a close system of PV23 variable pump and MF23 ration motor .

●Working is a close system of A4VG250 variable pump and GM5A1600 ration.

●High driving efficiency, small yawp,realize power self-distribute.

●Simpleness structure,convenience service.

The hydraulic unit

液壓件

●液壓泵、液壓馬達采用國際知名公司進口元件

●效率高、性能穩定、使用壽命長

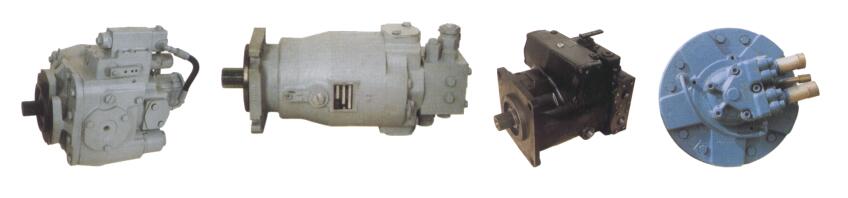

The hydraulic unit

●Adopt import hydraulic pump, hydraulic motor .

●High efficiency, stabilization capability and a long life-span.

變速箱與驅動橋

●采用兩速變速箱，低速用于作業和爬坡，高速用于行駛

●驅動橋采用SOMA剛性驅動橋

●機構緊湊、質量可靠

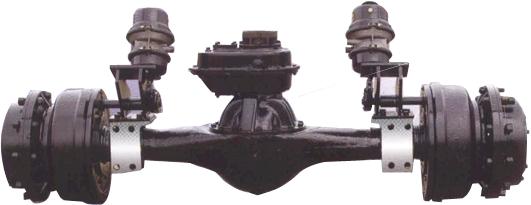

The gear-box and the dirve bridge

●Adopt double-speed gear-box, lowspeed is used for working and climbing,highspeed is used for driving

●The dirve bridge adopt SOMA rigidity dirve bridge

●Compact structure,credibility quality

駕駛室

●全封閉式駕駛室

●寬敞明亮、視野開闊、密閉性好，司機耳邊噪聲低

●可另配置空調

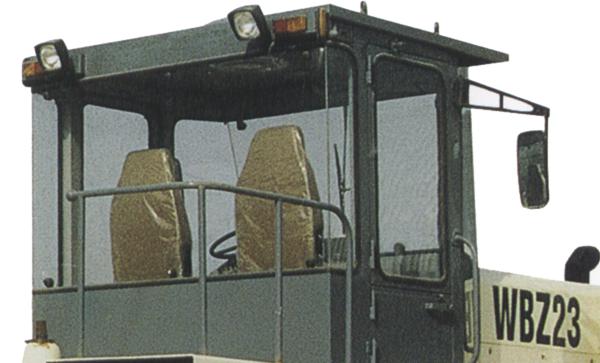

The cab

●The whole closed -cab

●Open and brightness，widen view , well obturation and low yawp

●Additional collocate air-condition

操作系統

●人性化設計，做大限度降低駕駛疲勞

●操縱輕便、靈活、安全可靠

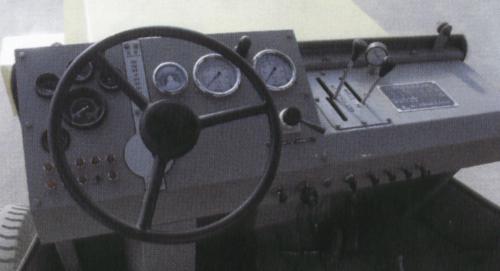

Operating system

●Humannss design,reduce tiredness

●Handiness operatinting,agility and safe

工作裝置

●轉子采用逆向旋轉，拌和質量高

●拌刀采用錘式組合拌刀，硬度高、壽命長，更換方便

●更換銑刨裝置后可對舊路面、路基進行銑刨作業

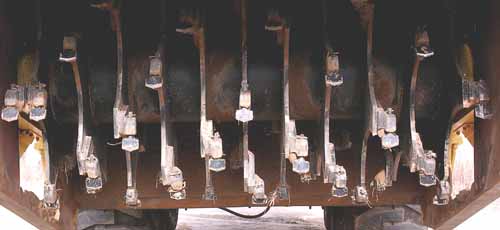

The working system

●Rotor adopt a converse circumgyrate,high quality mix

●Max-falchion adopt hammer-type combination ,high rididity, a long life-span. and convenience replacing.

●After replacing mill and dig setting, may work for old road surface and roadbed

主要技術 參數TECHNICAL SPECIFICATIONS
型　　號 Model		WBZ23
整機質量 Total Weight		15200
拌和寬度 Mixing width		2300
拌和深度 Mixing depth		400
行走速度（km/h）Running speed		0～23
工作速度（km/h） Working speed		0～1.8
轉　　子 Rotor	直徑Diameter	1306
	轉速（r/min）Rotor speed	160
	旋向Direction of rotate	逆向converse
爬坡能力（%）Grade ability		30
柴油機　型號 Diesel engine model 功率（kW） Power		NTA855-C400 298
外形尺寸長×寬 ×高Total size(L×B×H)		8800×3360×3420
